Symbolic Parametric Values


generate/do-it.gif    Qualitative Input Assistant

Test variations of models with case parameters.

Cross Field Alias

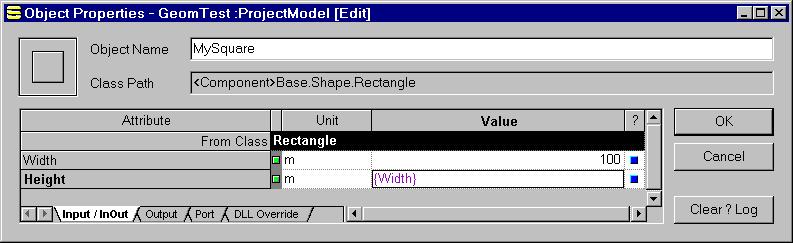

The user can enter the code of a field as the value of another field, creating a cross-field alias that will keep the fields with the same value. In the following figure, Height will always have the the same value as Width, making the rectangle a square. Changing the value of Width will also change the value of Height.

generate/paramalias.jpg

Assembly Parameter

Assembly parameters provide users with a mechanism to initialize common parametric values in different parts in any assembly levels. The user can enter symbolic parameters in some parts to create a "user variable" at the upper assembly levels.

generate/parampart.jpg

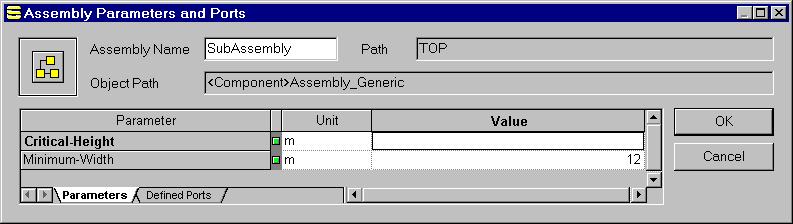

The assembly parameters can be assigned with values at each assembly level or, if unresolved at the top level assembly, turned into case parameters.

generate/paramassm.jpg

Case Parameter

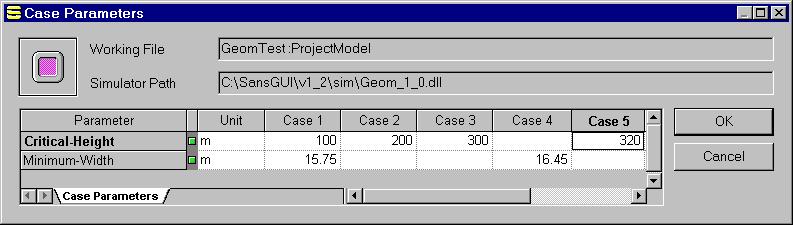

All the unresolved parameters can be assigned with values for multiple case simulation run, using the same model.

generate/paramcase.jpg
